Xinqiang Yan1,2 and John C. Gore1,2
1Department of Radiology, Vanderbilt University Medical Center, Nashville, TN, United States, 2Institute of Imaging Science, Vanderbilt University, Nashville, TN, United States
1Department of Radiology, Vanderbilt University Medical Center, Nashville, TN, United States, 2Institute of Imaging Science, Vanderbilt University, Nashville, TN, United States
Applying self-decoupling for proton coils in a dual-tuned nested array can avoid the use of fo any additional decoupling circuits and realize highly flexible dual-tuned coils.

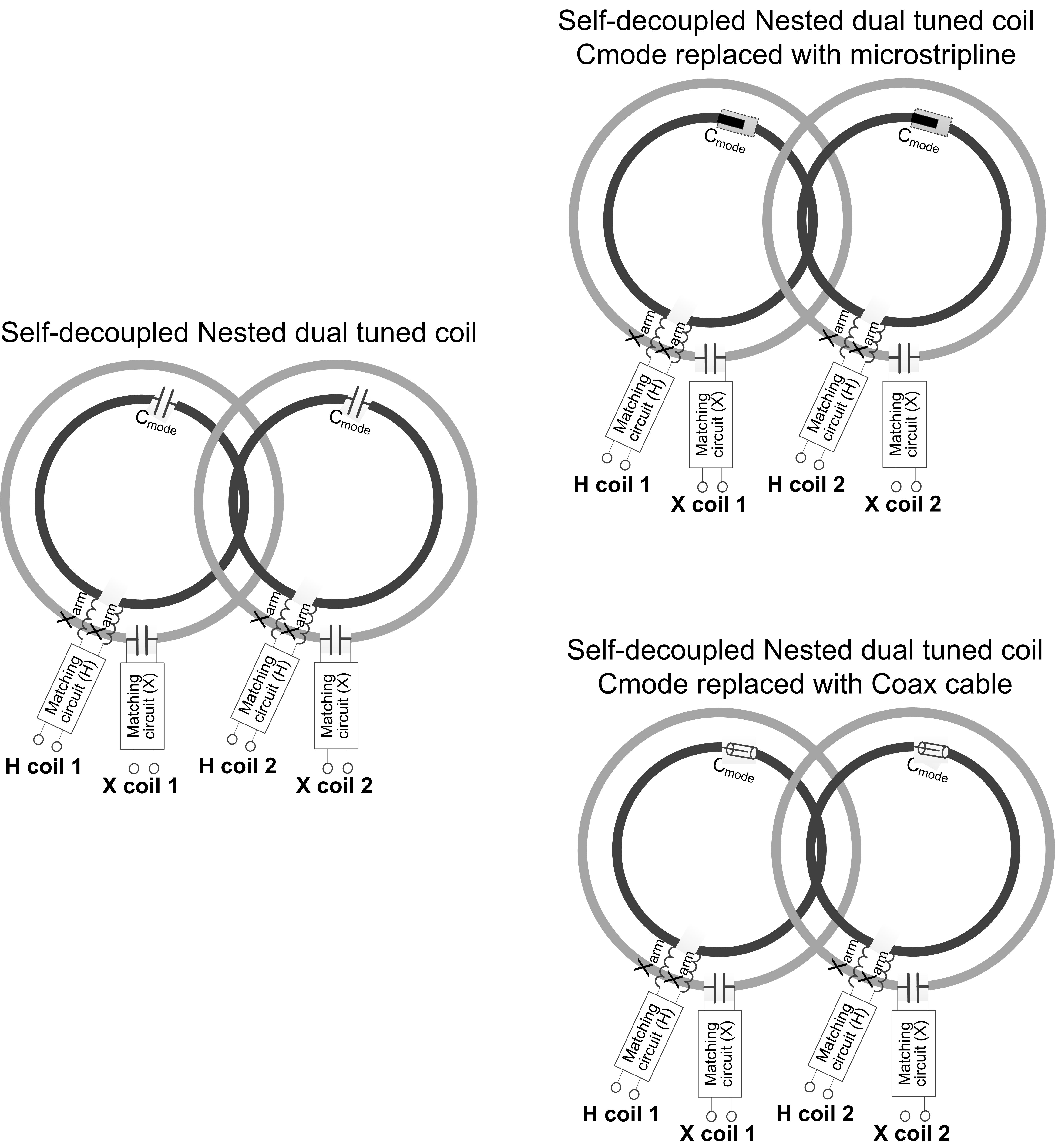

Figure 2 Diagram of a
nested dual-tuned coil array with two self-decoupled 1H coils and two overlapping-decoupled
X-nuclear coils. The lumped capacitor Cmode can be replaced with a microstrip
line or coaxial cable for flexible coils.

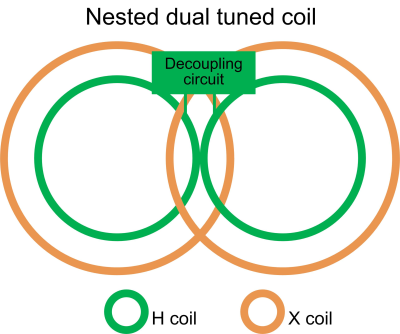

Figure 1 Illustration of a
nested dual-tuned coil array with two 1H coils and two X-nuclear coils. The
X-nuclear coils in the outer rings are overlapped by ~10% to minimize inductive
coupling. The overlapping area of proton coils in the inner ring is not optimal
for coil isolation so an additional decoupling circuit is required.
